Product Description

Features

  • Service truck, bus, super single, agricultural & lock ring tyre & rim combinations
  • Rotational control via portable wired stand
  • Quick locking manual rotation tool
  • Suitable for both tube & tubeless tyres
  • Rim clamping range 11” to 27”
  • Hydraulic up/down movement of chuck unit
  • Hydraulic left/right movement of tool unit carriage
  • Hydraulic wheel clamping
  • All motions controlled by console & pedal box
  • Patented G108A3 tyre lever included
  • Includes clamp protection kit & pliers for alloy rims
  • Manufactured in Italy

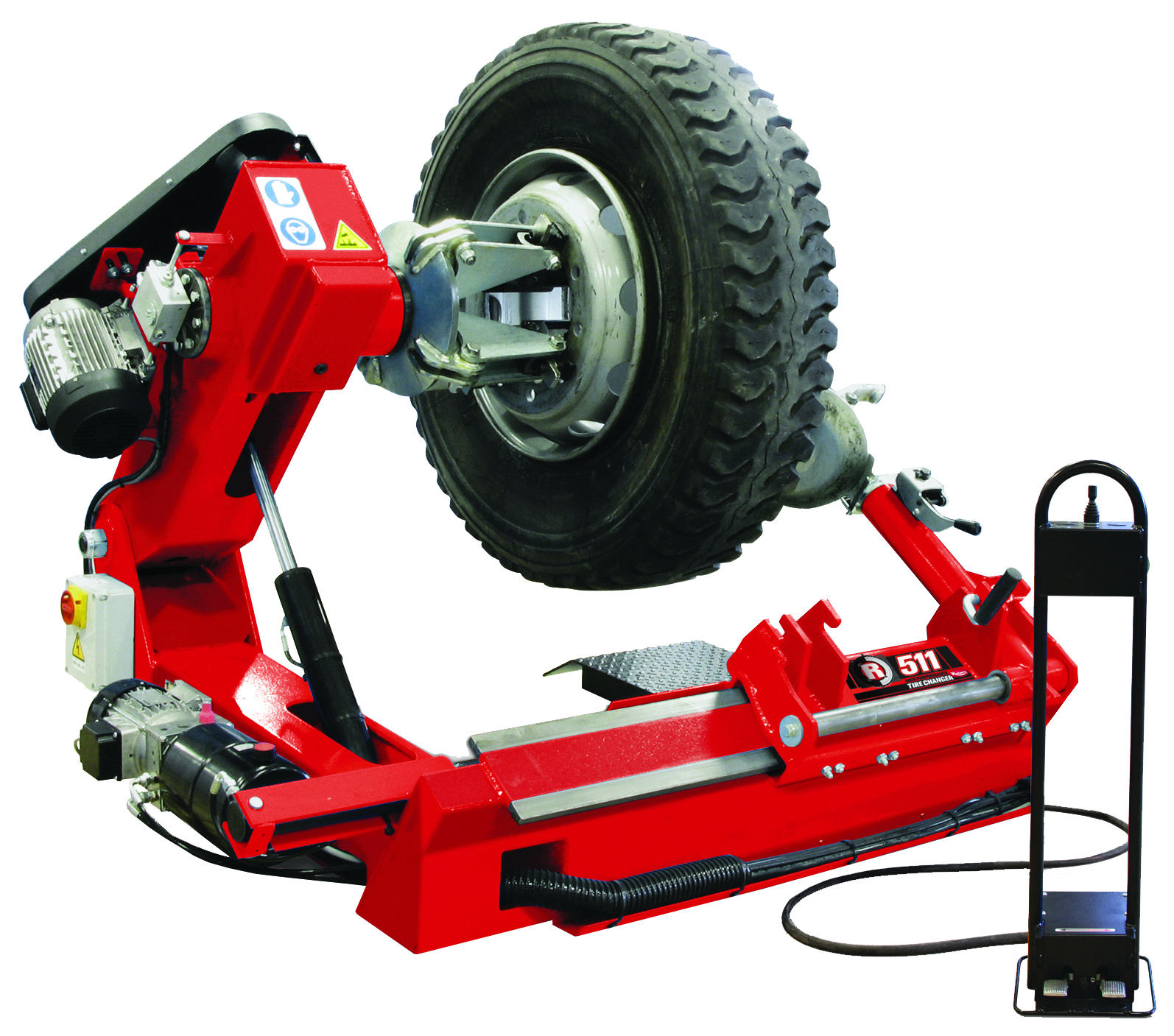

Heavy Duty Commercial Tyre Changer

Model: R511

warranty icon
3 Years Parts & Labour Warranty

Get A Quote

Speak to us on 1300 287 766 or fill in the form below

  • This field is for validation purposes and should be left unchanged.
rotary-logo

Rotary, the world’s most trusted vehicle hoist company has set the benchmark for vehicle hoists.

As a member of the Vehicle Service Group (VSG), with manufacturing plants in three continents employing over 1700 personnel, Rotary is a strong, diverse and dynamic global leader in the vehicle service industry. With the widest variety of vehicle hoists on the market, Rotary manufactures Two Post, Four Post, Scissor, Alignment, Inground and Mobile Column lifts.

There is a perfect solution for everything from small vehicle workshops through to large scale commercial operations.

Specifications

Specifications R511
Rim Clamping Range 11"- 27
Max. Tyre Diameter 1,640mm (64")
Max. Tyre Width 925mm (36.4")
Chuck Rotation Speed 8rpm
Chuck Unit Rotation Motor 3hp / 2.2kW
Hydraulic Drive Unit Motor 1hp / 0.75kW
Power Supply 400V / 50Hz
Machine Weight 454kg
