Product Description
The new, versatile SPO55M is a two post hoist ideal for passenger cars through to larger vehicles. With extended height options and optional lifting accessories, commercial vans with high cabins are easily handled.
Features
- 2 models available
- 5500 kg lift capacity
- Original “Double S” column design
- 3 stage symmetric load arms
- 2 stage adjustable load pads
- 119 mm minimum load pad height
- Single point lock release
- Automatic arm locks
- High pressure hydraulic cylinders
- Low profile roof protection bar
- Powder coat finish
- 89 mm & 127 mm pickup extension adaptors included
- FJ6173Y U-Support light commercial adaptors included
- Optional AE-250YL Load arm extensions also available (Reduces lift capacity to 5000kg)
- Optional FJ6210C Support adaptors for Sprinter & Crafter vans also available
- Optional Lock Light also available
- Optional SpotLine also available
Models Available
- SPO55M-EH0
- SPO55M-EH2
Extra High Model
The SPO55M-EH2, with its 4775 mm overall height is ideal for light commercials & vans with high roofs.
Manual Locking
The SPO55M features a manual lock release with electro-hydraulic push button for the safe lowering of a vehicle.
119mm Minimum Load Pad Height
The SPO55M is fitted with 2 stage adjustable load pads, with a working range of 119 – 181 mm.
Italian Power Unit
All Rotary hoists are supplied standard with quality Italian electric motors & hydraulic power units.
Rotary, the world’s most trusted vehicle hoist company has set the benchmark for vehicle hoists.
As a member of the Vehicle Service Group (VSG), with manufacturing plants in three continents employing over 1700 personnel, Rotary is a strong, diverse and dynamic global leader in the vehicle service industry. With the widest variety of vehicle hoists on the market, Rotary manufactures Two Post, Four Post, Scissor, Alignment, Inground and Mobile Column lifts.
There is a perfect solution for everything from small vehicle workshops through to large scale commercial operations.
OPTIONAL EQUIPMENT & ACCESSORIES
Lock Light
FA834Y / FA835Y
Lock Light
Designed to suit all Rotary 2 Post & 4 Post models, the Rotary lock light allows the technician to easily identify when the vehicle has been lowered onto the mechanical locks of the hoist. The green indicator light illuminates to provide a visual confirmation of when the hoist is lowered to the locks.
SpotLine Laser
FA7814Y-KIT
SpotLine Laser
Designed to suit all clear-floor Rotary 2 Post’s, Rotary’s Spotline motion activated laser helps technicians centre vehicles in the bay quickly & accurately. Fitted to the overheard beam this device throws a laser line directly down the centre of the bay. When the technician is positioning vehicle into the bay, the laser illuminates on the dashboard or centre console allowing the technician to quickly position the vehicle.
Load Arm Extensions
AE-250YL
Load Arm Extensions
Designed to suit the SPO55M, the AE-250YL 250mm load arm extension kit adapts to the standard load arms to increase reach. Four load arm extensions included. Please note, this kit reduces the lift capacity of the SPO55M to 5000kg.

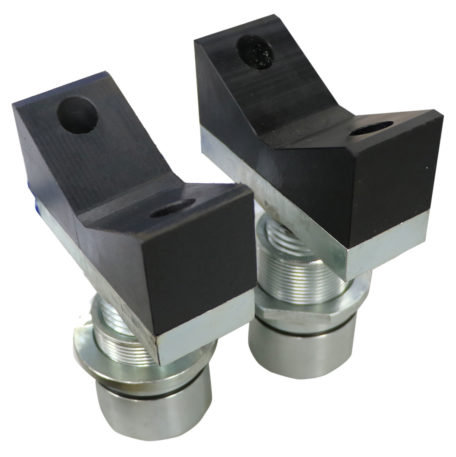

Support Adaptors For Sprinter & Crafter Vans
FJ6210C
Support Adaptors For Sprinter & Crafter Vans
Designed to suit the SPO55M, the FJ6210C are designed specifically for use with the Sprinter & Crafter van. Used for the rear pick-up points. These adaptors replace the standard load pad assembly. Kit includes two adaptors.
Round Rubber Lift Pad
SPL40-4001
Round Rubber Lift Pad
Replacement rubber lift pad for all SGL35 & SPO55M models. Sold individually.
